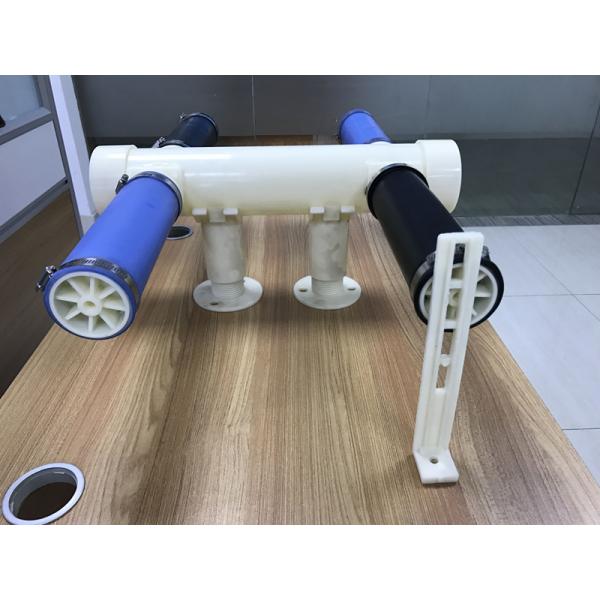

Nano Bubble Air Pond Aeration Tube Diffuser For Sewage Treatment
The long-life EPDM film is a special elastomeric polymer with high non-deformability and tear
resistance index. The film has a uniform thickness and a small pressure. A special treatment
technique is used to spread 6000 micropores on the surface of the membrane. Under
operating conditions, the bubbles rise with the spiral vortex, giving the membrane a self-
cleaning ability. The membrane life is guaranteed for 5 years in normal use.
But usually it needs to be used with a water removal system.
Features:
reduces installation time.
Any diffuser length is available to suit the needs of each application.
EPDM rubber.
Attachment system eliminates structural concerns of many other tube diffuser designs.
Suitable for off/on applications.
Diffusers are factory assembled for easy installation.
Available membrane material: EPDM, Silicon or customized
Applications
1.Municipal waste water treatment.
2.Industrial waste water treatment.
3.Clean water treatment.
4.Sludge stabilization.
5.Wastewater ozone diffusion.
6.Aeration of fish ponds.
7.Aeration of streams and lakes.
Parameter
| Model | φ63 | φ93 | φ113 |
| Moc | EPDM/Silicon membrane ABS tube | EPDM/Silicon membrane ABS tube | EPDM/Silicon membrane ABS tube |
| Length | 500/750/1000mm | 500/750/1000mm | 500/750/1000mm |
| Connector | 3/4NPT | 3/4NPT | 3/4NPT |
| Flow range(m3/h) | 2-14 | 5-20 | 6-28 |
| Bubble Size(mm) | 1-2 | 1-2 | 1-2 |
| Service Area(m2) | 0.75-2.5 | 1.0-3.0 | 1.5-2.5 |
| Service Life | >5year | >5year | >5year
|
